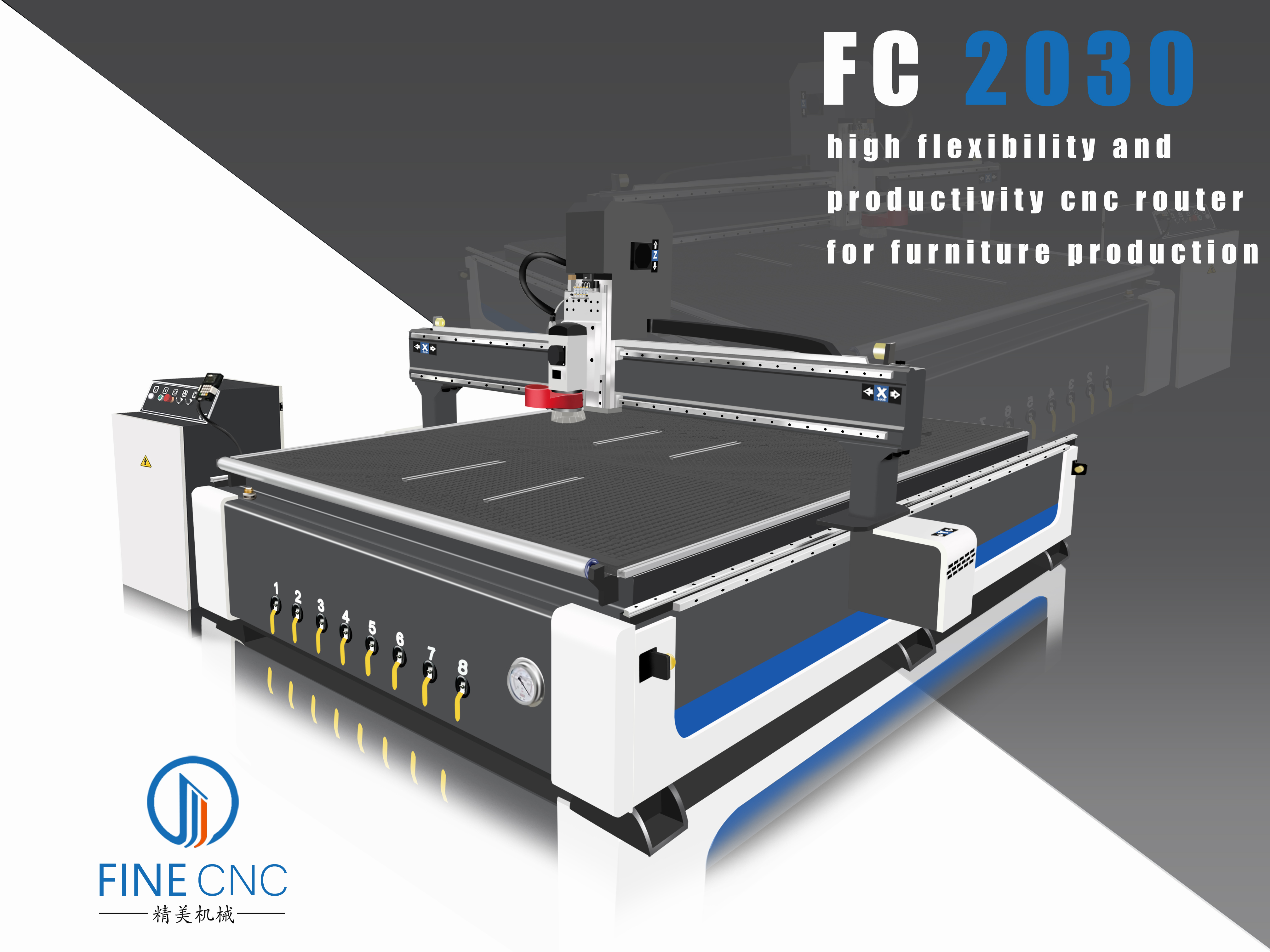

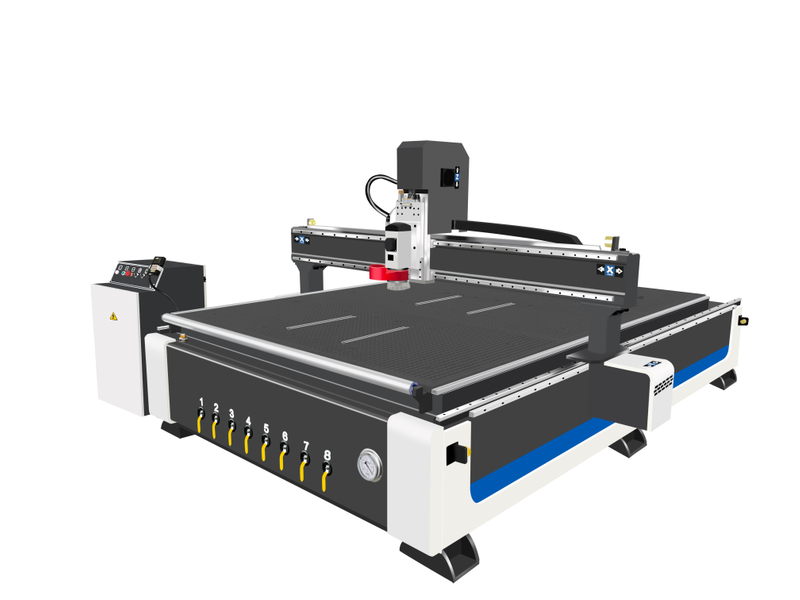

FC2030 CNC Router

※RichAuto DSP A11 Control system ※China CC brand 6.0kw air cooling ※Heavy duty metal welding ※Vacuum table & T Slot table ※Leadshine 758 hybrid servo ※Japan SHIMPO Reducer ※Original Taiwan TBI ball screw ※Original Taiwan square rails ※Fuling Brand Inverter ※France Schneider electric parts

Availability:



Inquire

Product Description

Product Description

FC 2030 CNC Router Machine Application industry

-woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing

video game cabinets and panels,computer table and Plate furniture auxiliary processing.

-The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety

of materials advertising the production of decorative products.

-die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,

plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

FC 2030 CNC Router Machine configuration and parameters

Control system	RichAuto DSP A11 Control system
Spindle	China CC brand 6.0kw air cooling,ER32,speed 6000-18000rpm/min
Machine body and gantry	Heavy duty metal welding,Quenching and sandblasting,Twice painting
Table	Vacuum&T slot
Driving system	Leadshine 758 hybrid servo
X, Y Axis structure	helical rack and Japan SHIMPO Reducer
Z Axis Structure	Original Taiwan TBI ball screw
X Y Z Axis Square rails	Original Taiwan 25 square rails
Inverter	Fuling Brand 7.5kw
Electric parts	France Schneider
Limited switch	Japan Omron
Machine cable	German Siemens OEM factory cable
Oil lubrication	Auto control with Aluminum oil pipe
Machine working size	X Axis-2000mm ,Y Axis-3000mm ,Z Axis-200mm
Machine Size	Length 3700mm ,Wide 2280mm ,High 1800mm
Machine Max.travel speed	30m/min
Machine Max.working speed	20m/min
Machine Voltage	3PH ,380V ,50/60HZ
Machine weight	1800kg
