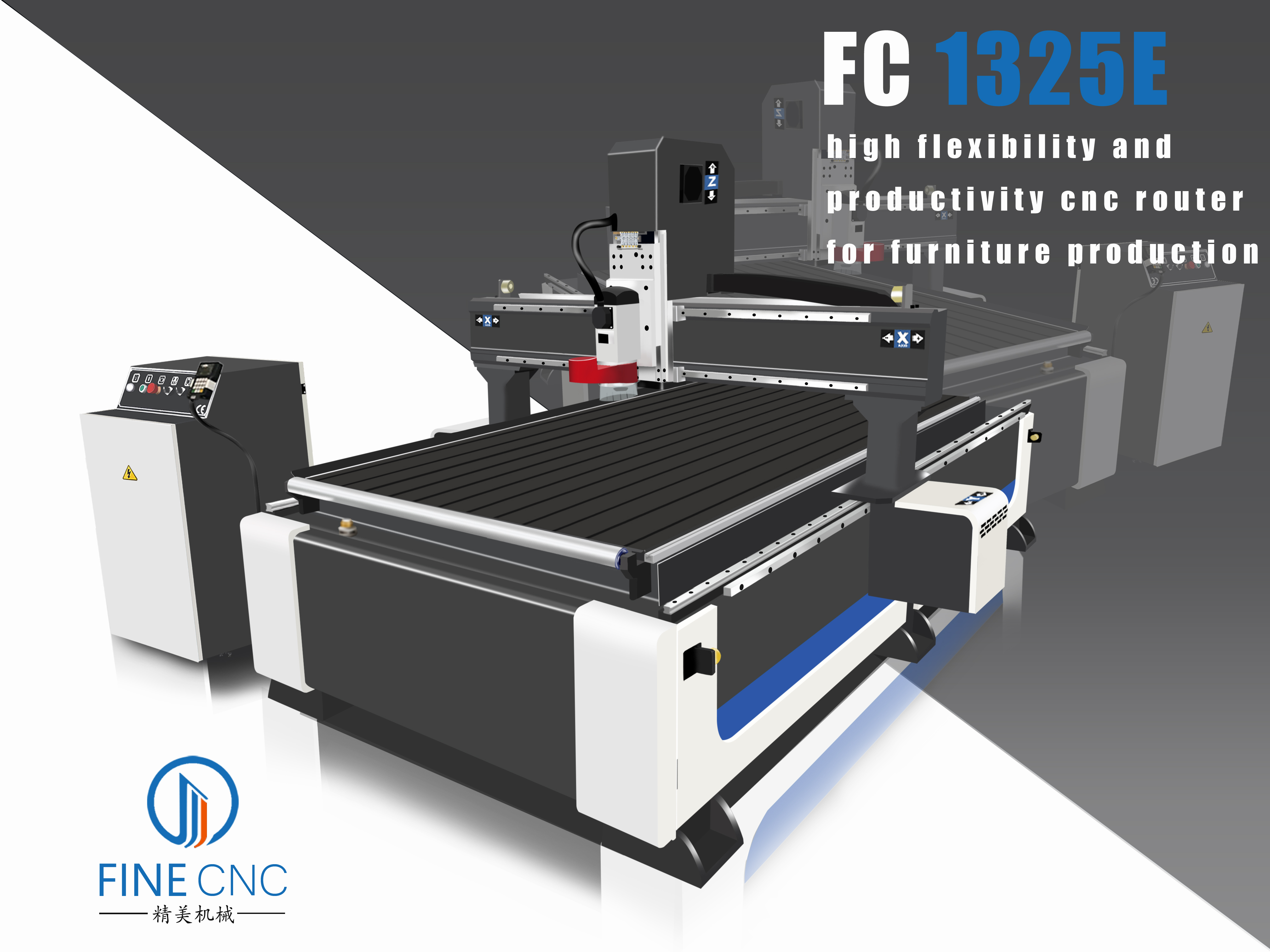

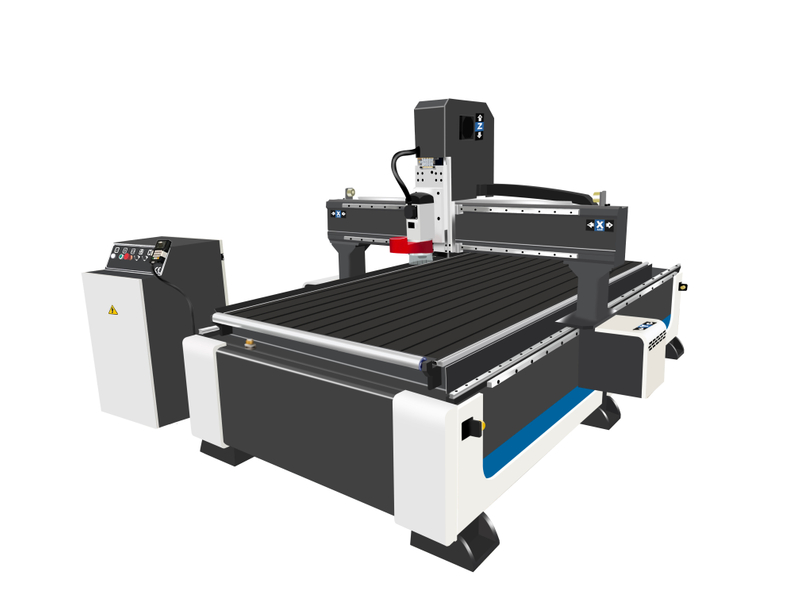

FC1325E CNC Router

※RichAuto DSP A11 Control system
※China CC brand 4.5kw air cooling
※Heavy duty metal welding
※Vacuum table & T Slot table
※Stepped motor and Yako2811 driver
※Japan SHIMPO Reducer
※Original Taiwan TBI ball screw
※Original Taiwan CSK brand square rails
※Fuling Brand Inverter
※France Schneider electric parts

Product Description

Machine Application industry

-woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing

video game cabinets and panels,computer table and Plate furniture auxiliary processing.

-The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety

of materials advertising the production of decorative products.

-die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,

plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

Machine configuration and parameters

Control system RichAuto DSP A11 Control system
Spindle China CC brand 4.5kw air cooling,ER32,speed 6000-18000rpm/min
Machine body and gantry Heavy duty metal welding,Quenching and sandblasting,Twice painting
Table Aluminum alloy T Slot with PVC
Driving system Stepped motor and Yako2811 driver
X, Y Axis structure Wuxi Xinyue 1.25M helical rack and Japan SHIMPO Reducer
Z Axis Structure Original Taiwan TBI ball screw
X Y Z Axis Square rails Original Taiwan CSK brand 25 square rails
Inverter Fuling Brand 5.5kw
Electric parts France Schneider
Limited switch Japan Omron
Machine cable German Siemens OEM factory cable
Oil lubrication Hand control with Aluminum oil pipe
Machine working size X Axis-1300mm ,Y Axis-2500mm ,Z Axis-200mm
Machine Size Length 3200mm ,Wide 2280mm ,High 1800mm
Machine Max.travel speed30m/min
Machine Max.working speed 20m/min
Machine Voltage 3PH ,380V ,50/60HZ
Machine weight 1500kg
