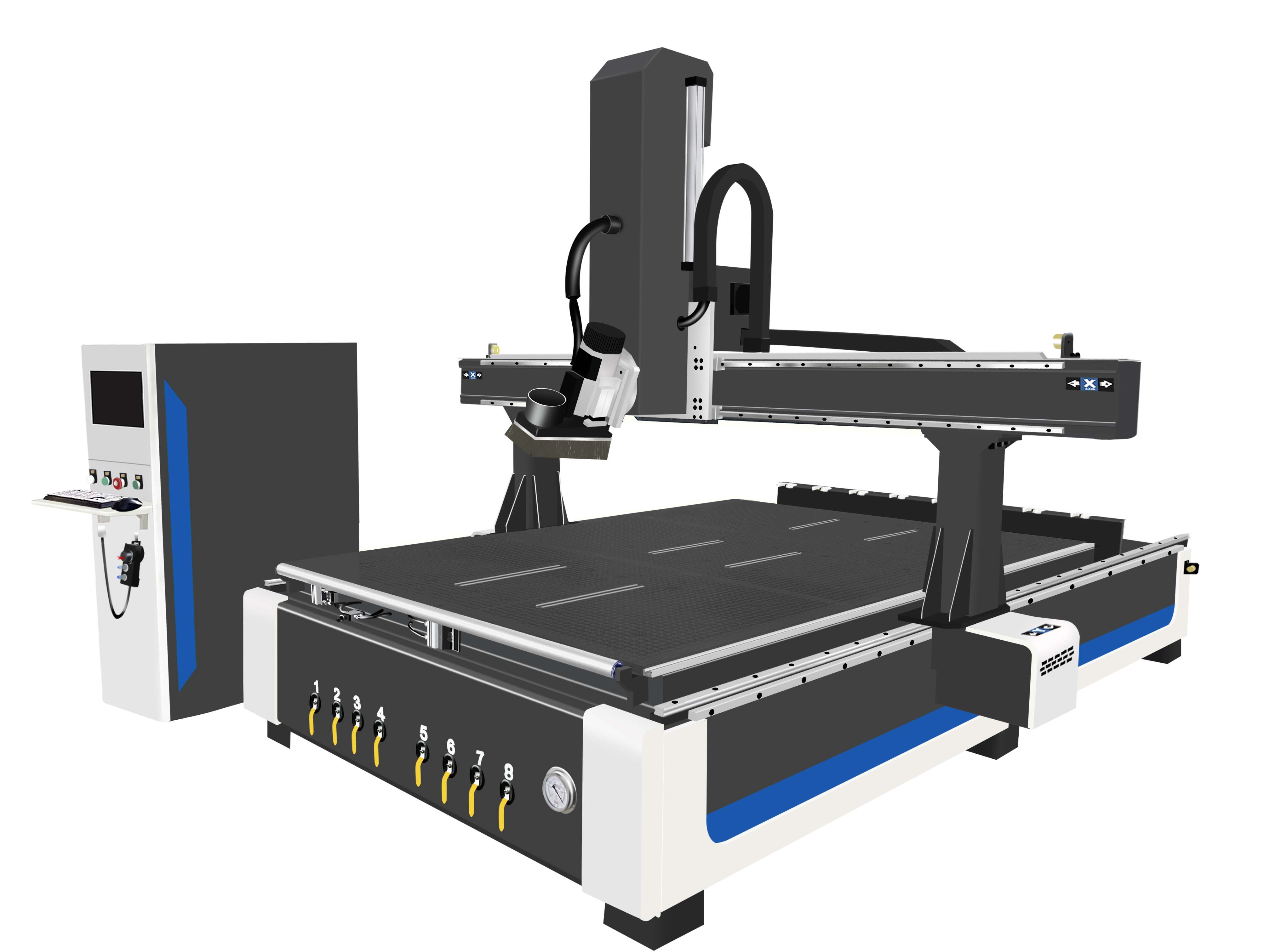

FC2030-8 4 Axis CNC Router

※Taiwan Syntec system with RTCP
※China CC brand 9kw air spindle rotate ±90°
※Taiwan Syntec 850W Servo
※Vacuum table & T Slot table
※Stepped motor and Yako2811 driver
※Japan SHIMPO Reducer
※Original Taiwan TBI ball screw
※Original Taiwan square rails
※Fuling Brand Inverter
※France Schneider electric parts

Product Description

FC2030-8 4 Axis CNC Router Machine Application industry

-woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing

video game cabinets and panels,computer table and Plate furniture auxiliary processing.

-The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety

of materials advertising the production of decorative products.

-die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,

plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

FC2030-8 4 Axis CNC Router Machine configuration and parameters

Control system Taiwan Syntec system with RTCP
Spindle China CC brand 9KW Air cooling with 8 tools Linear ATC
Machine body and gantry Heavy duty metal welding,Quenching and sandblasting,Twice painting
Table Vacuum & T Slot
Driving system Taiwan Syntec 850W Servo
X, Y Axis structure 2M helical rack and Japan SHIMPO Reducer
Z Axis Structure Original Taiwan TBI ball screw
X Y Z Axis Square rails Original Taiwan 30 square rails
Inverter Fuling Brand 11kw
Electric parts France Schneider
Limited switch Japan Omron
Machine cable German Siemens OEM factory cable
Oil lubrication Automatic control with Aluminum oil pipe
Machine working size X Axis-2000mm ,Y Axis-3000mm ,Z Axis-450mm
Machine Size Length 4300mm ,Wide 2280mm ,High 2500mm
Machine Max.travel speed50m/min
Machine Max.working speed 20m/min
Machine Voltage 3PH ,380V ,50/60HZ
Machine weight 2200kg
