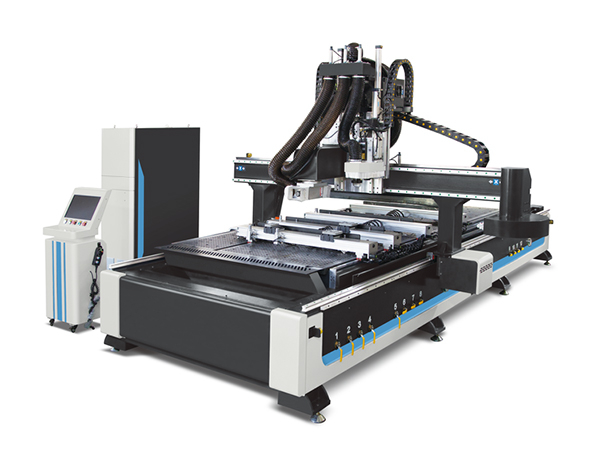

FINECNC F7 PTP CNC Router

※Taiwan Syntec Control system with RTCP
※China CC brand 9kw air cooling spindle rotate ±90°
※Taiwan syntec 850W Servo
※Vacuum table & T Slot table
※Stepped motor and Yako2811 driver
※Japan SHIMPO Reducer
※Original Taiwan TBI ball screw
※Original Taiwan square rails
※Fuling Brand Inverter
※France Schneider electric parts

Availability:


Inquire

Product Description

Product Description

FINECNC F7 PTP CNC Router Machine Application industry

-woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing

video game cabinets and panels,computer table and Plate furniture auxiliary processing.

-The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety

of materials advertising the production of decorative products.

-die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,

plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

FINECNC F7 PTP CNC Router Machine configuration and parameters

Control system	Taiwan Syntec system
Spindle	China CC brand 9kw air spindle +6.0kw double head spindle
Machine body and gantry	Heavy duty metal welding,Quenching and sandblasting,Twice painting

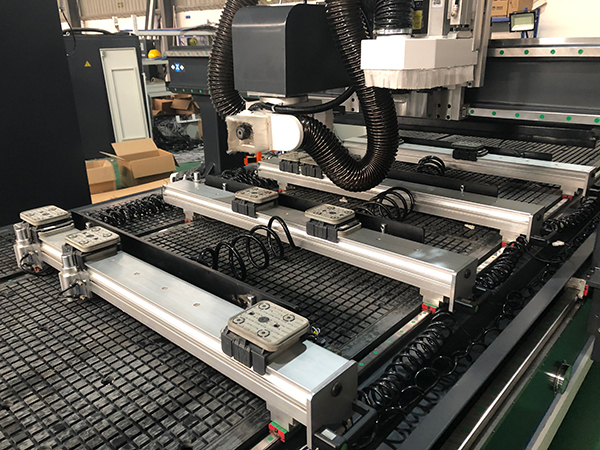

Table	Vacuum table&4 Pieces with 12 pieces German SCHMALZ Pads
Driving system	Japan YASKAWA 850W Servo
X, Y Axis structure	2M helical rack and Japan SHIMPO Reducer
Z Axis Structure	Original Taiwan TBI ball screw
X Y Z Axis Square rails	Original Taiwan 30 square rails
Inverter	Fuling Brand 11kw+7.5kw
Electric parts	France Schneider
Limited switch	Japan Omron
Machine cable	German Siemens OEM factory cable
Oil lubrication	Automatic control with Aluminum oil pipe
Machine working size	X Axis-1300mm ,Y Axis-2500mm ,Z Axis-300mm
Machine Size	Length 3800mm ,Wide 2280mm ,High 2500mm
Machine Max.travel speed	60m/min
Machine Max.working speed	20m/min
Machine Voltage	3PH ,380V ,50/60HZ
Machine weight	2000kg
