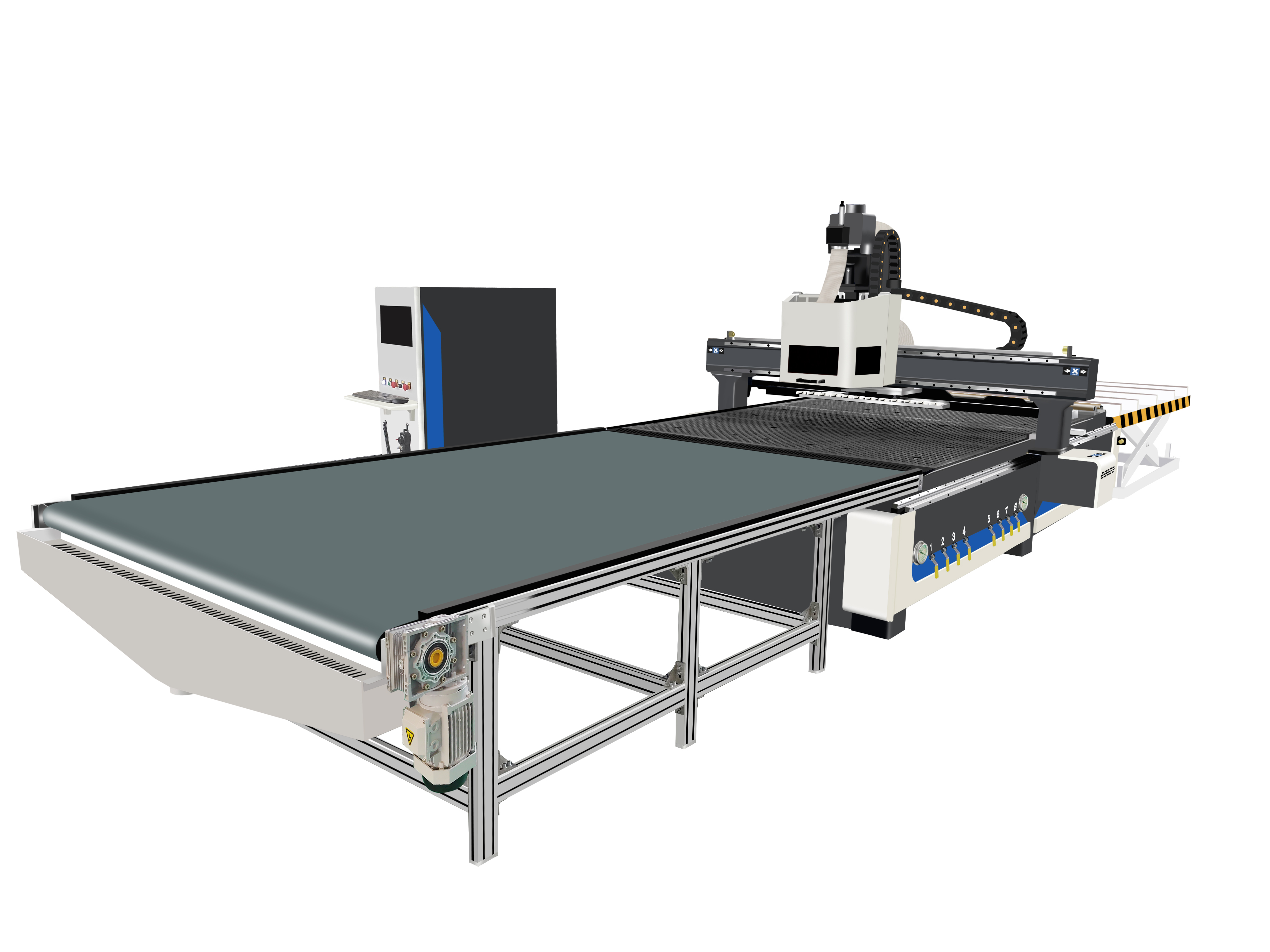

F6 Automatic load unloading CNC Router

※Taiwan Syntec 6MB
※China CC brand 9KW Air cooling with 12 tools disc atc
※Heavy duty metal welding
※Vacuum table
※Stepped motor and Yako2811 driver
※Japan SHIMPO Reducer
※Original Taiwan TBI ball screw
※Original Taiwan CSK brand square rails
※Fuling Brand Inverter
※France Schneider electric parts

Product Description

F6 Automatic load unloading CNC Router Machine Application industry

-woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing

video game cabinets and panels,computer table and Plate furniture auxiliary processing.

-The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety

of materials advertising the production of decorative products.

-die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,

plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

F6 Automatic load unloading CNC Router Machine configuration and parameters

Control system Taiwan Syntec 6MB control
Spindle China CC 9kw air spindle with 12 tools atc and italy HSD 9 drilling bank
Machine body and gantry Heavy duty metal welding,Quenching and sandblasting,Twice painting
Table Vacuum
Driving system Japan yaskawa 850w servo motor and driver
X, Y Axis structure 2M helical rack and Japan SHIMPO Reducer
Z Axis Structure Original Taiwan TBI ball screw
X Y Z Axis Square rails Original Taiwan CSK brand 30 square rails
Inverter Fuling Brand 11kw
Electric parts France Schneider
Limited switch Japan Omron
Machine cable German Siemens OEM factory cable
Oil lubrication Automatic control with Aluminum oil pipe
Machine working size X Axis-1300mm ,Y Axis-2500mm ,Z Axis-100mm
Machine Size Length 11000mm ,Wide 2280mm ,High 2000mm
Machine Max.travel speed60m/min
Machine Max.working speed 20m/min
Machine Voltage 3PH ,380V ,50/60HZ
Machine weight 4000kg
